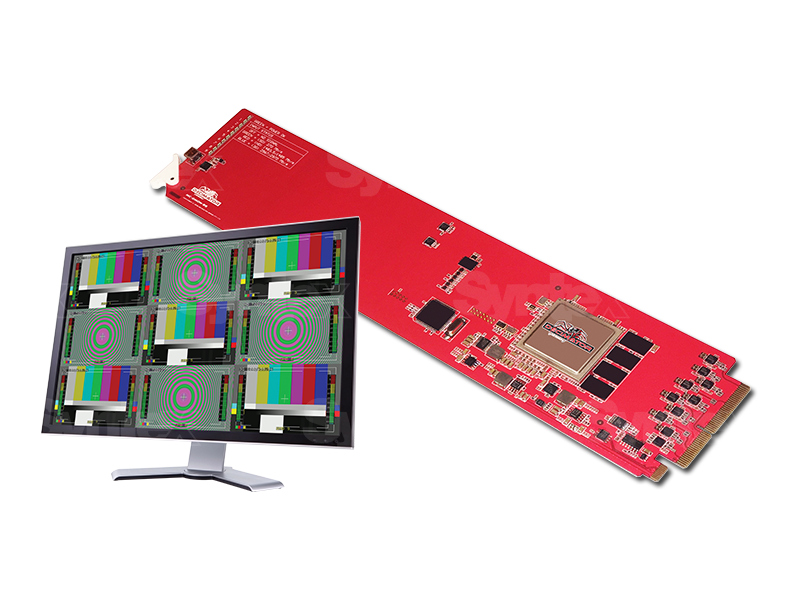

Decimator Design MC-DMON-9S

Decimator Design MC-DMON-9S - 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

Decimator Design MC-DMON-9S - 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

• Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• Low cost miniature (3G/HD/SD)-SDI 1 to 9 channel Multi-Viewer or 9 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Format Status overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• 9 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 1 x (3G/HD/SD)-SDI output
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 9 inputs to be selected and routed to the (3G/HD/SD)-SDI output
• USB port for control and firmware updates
• openGear DashBoard for control
